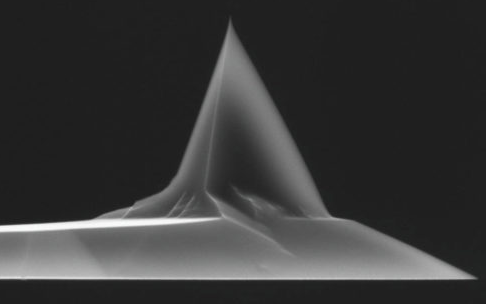

NSG03/Au
High Resolution Silicon AFM Cantilevers NSG03/Au series are designed for Conductive applications.
Typical Resonant Frequency 90 kHz (guaranteed range 47-150kHz), Typical Force Constant 1,74 N/m (guaranteed range 0,35-6,1N/m). Cantilever has Au reflective side coating to increase laser signal.
Probes are packed in boxes with 15 and 50 pieces.
| Серия кантилевера | Длина балки, L±10мкм | Ширина балки, W±5мкм | Толщина балки, T±0.5мкм | Резонансная частота, кГц | Силовая константа, Н/м | ||||
|---|---|---|---|---|---|---|---|---|---|
| min | typical | max | min | typical | max | ||||
| NSG03/Au | 135 | 30 | 1.5 | 47 | 90 | 150 | 0.35 | 1.74 | 6.1 |
