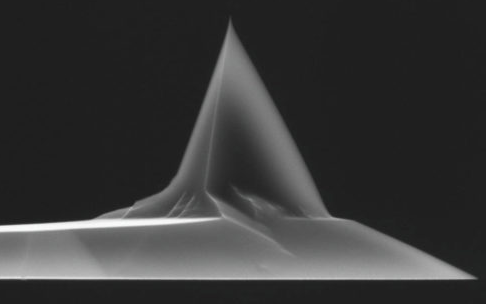

CSG30/Pt
High Resolution Silicon AFM Cantilevers CSG30/Pt series are designed for Conductive applications.
Typical Resonant Frequency 48 kHz (guaranteed range 26-76kHz), Typical Force Constant 0,6 N/m (guaranteed range 0,13-2N/m). Cantilever has PtIr reflective side coating to increase laser signal.
Probes are packed in boxes with 15 and 50 pieces.
| Серия кантилевера | Длина балки, L±10мкм | Ширина балки, W±7мкм | Толщина балки, T±1мкм | Резонансная частота, кГц | Силовая константа, Н/м | ||||
|---|---|---|---|---|---|---|---|---|---|
| min | typical | max | min | typical | max | ||||
| CSG30/Pt | 225 | 25 | 2 | 26 | 48 | 76 | 0.13 | 0.6 | 2 |
